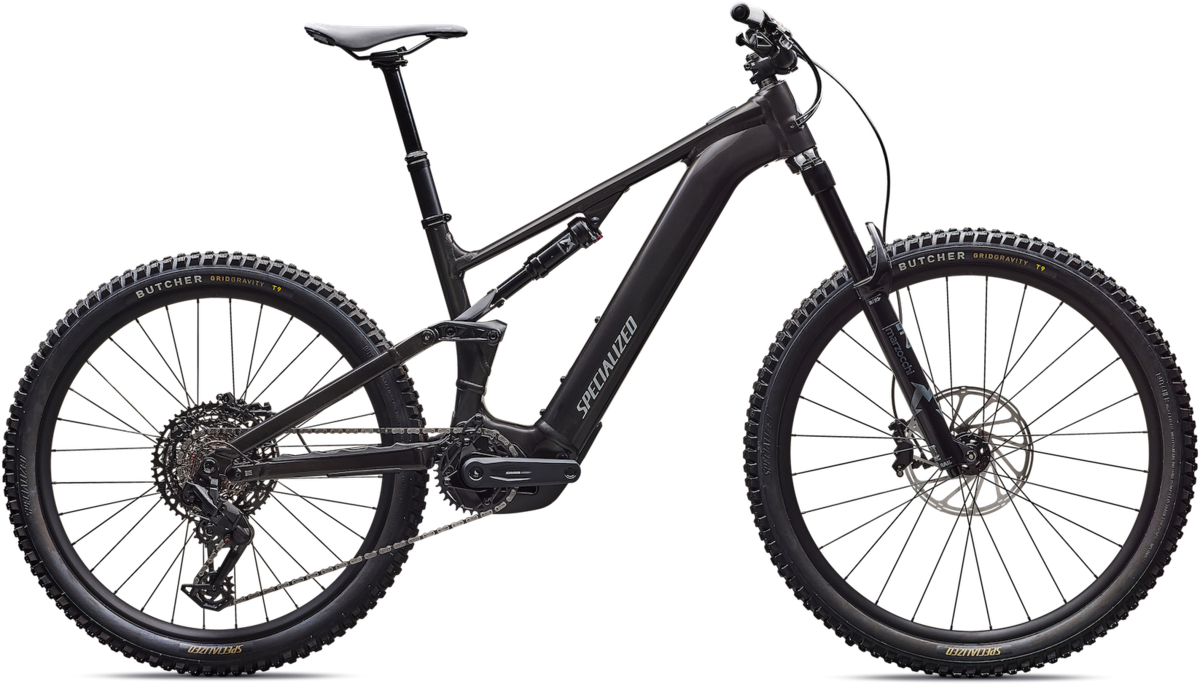

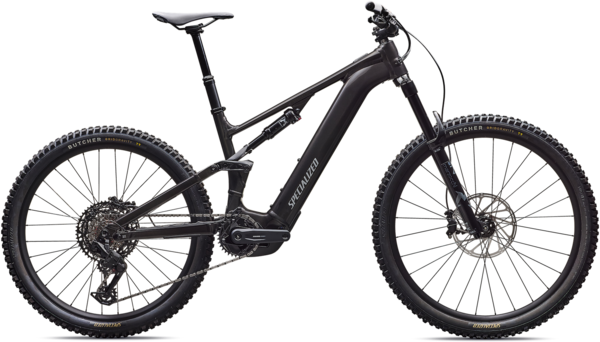

Specialized Turbo Levo 4 Alloy

Specialized Turbo Levo 4 Alloy
  • Color: Gloss Metallic Obsidian / Silver Dust
$5,800.00
Color: Gloss Metallic Obsidian / Silver Dust
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

- Use: Full Power E-MTB Trail
- E-System - Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33
hour range
- Frame: Premium M5 Alloy, Geo Adj & SWAT Storage
- Front: 160mm Marzocchi Bomber Z1, Rear: 150mm Marzocchi Bomber Inline
- Drivetrain - SRAM 70 Eagle T-Type Mechanical
- Wheels - Specialized Alloy / Bear Pawls hubs

Sizes:
SizeS1S2S3S4S5S6
Stack 609 618 626 638 652 667
Reach 407 435 455 480 505 535
Headtube Length 94 95 103 117 132 149
Headtube Angle 64 64.5 64.5 64.5 64.5 64.5
BB Height 355 350 350 350 350 350
BB Drop 24.13 29.5 29.5 29.5 29.5 29.5
Trail 132 132 137 132 132 132
Fork Length (full) 577 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44 44
Front Center 744 765 789 820 851 888
Chainstay Length 435 435 435 435 435 435
Wheelbase 1179 1200 1223 1254 1286 1323
Top-tube Length (horizontal) 556 578 599 627 655 689
Bike Standover Height 753 753 754 753 758 761
Seat Tube Length 379 390 405 425 445 465
Seat Tube Angle 76 77 77 77 77 77
Saddle Height for Eff. ST Angle 645 690 735 780 825 870
Max Seatpost Insertion 264 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80 80
Crank Length 155 155 155 155 155 155
Handlebar Width 780 780 800 800 800 800
Stem Length 40 40 40 40 40 40
Saddle Width 155 155 143 143 143 143
Seatpost Length 100 125 150 170 190 190

Specs

Frame All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Fork Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Rear Shock Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust
Wheels Specialized Alloy / Bear Pawls hubs
Hubs Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Tires Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Crankset SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings SRAM 34t T-Type chainring, 104 BCD, steel
Shifters SRAM 70 trigger, 12-speed, single click
Rear Derailleur SRAM Eagle 70 T-Type
Cassette/Freewheel XS-1270, 12-speed, 10-52t
Chain SRAM Eagle 70 T-Type Flattop Chain
Brakes Front: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Tape/Grips Specialized Trail Grips
Stem Alloy Trail Stem, 35mm bar bore
Seatpost TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4- S5: 170mm, S6: 200mm
Saddle Body Geometry Bridge Saddle, steel rails
Pedals Sold Separately
Motor All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
Battery 840Wh battery
Controller/Display All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger Specialized 4amp charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Metallic Obsidian / Silver Dust / S3 / 29-inch front / 27.5-inch rear 196625206962 95226-7103 210000006881
Gloss Metallic Obsidian / Silver Dust / S4 / 29-inch front / 27.5-inch rear 196625206719 95226-7104 210000006882
