Details

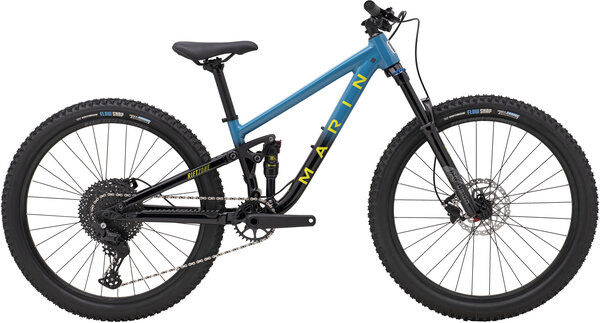

The Rift Zone 26 and Rift Zone Jr are for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a ride just as capable as its full-size counterpart.
- ONE SIZE: 4'6" to 5'2"
TECHNOLOGY:
AIR SUSPENSION
Easily adjustable air suspension is tunable for a growing kid.
INTERNAL ROUTING
The Rift Zone 26 and Rift Zone Jr are compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag-free ride.
DISC BRAKES
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

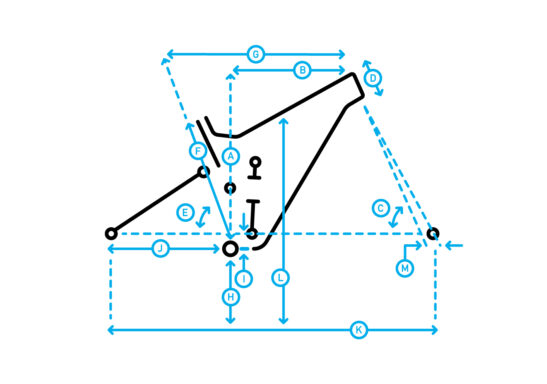

All lengths in millimeters
ONE SIZE | |
---|---|
A- STACK | 536.24 |
B- REACH | 380 |
C- HEADTUBE ANGLE | 67.5° |
D- HEADTUBE LENGTH | 105 |
E- SEATTUBE ANGLE | 69° |
F- SEATTUBE LENGTH | 335 |
G- TOPTUBE EFFECTIVE | 536 |
H- BB HEIGHT | 330.4 |
I- BB DROP | 10 |
J- CHAINSTAY | 428.5 |
K- WHEELBASE | 1018 |
L- STANDOVER HEIGHT | 621 |
M- FORK OFFSET | 42 |
SEATPOST DIAMETER | 30.9 |
HANDLEBAR WIDTH | 720 |
STEM LENGTH | 45 |
CRANK LENGTH | 170 |
Specs
Frame | All New Series 3 6061 Aluminum Frame, 26" Wheels, 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB |
---|---|
Fork | X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle |
Rear Shock | X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware |
Rims | Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
Hubs |
Front: Forged Alloy, 100x15mm, Centerlock Disc, 32H Rear: Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H |
Spokes | 14g Stainless Steel |
Axles | Closed 9-12 Thru-Axle QR System |
Tires | Vee Tire Co, Flow Snap 26x2.4", Tackee Compound, Wire Bead |
Bottom Bracket | External Sealed Cartridge Bearings |
Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing, 170mm Length |
Shifters | Shimano Deore, 11-Speed, SL-5100R |
Rear Derailleur | Shimano Deore, 11 Speed, SGS |
Cassette/Freewheel | SunRace, 11-Speed, 11-51T, ED Black |
Chain | KMC X-11 Silver and Black |
Brakes |
Front: Shimano MT-201 Hydraulic Disc, 180mm Rotor Rear: Shimano MT-201 Hydraulic Disc, 160mm Rotor |
Brake Levers | Shimano BL-MT201 Hydraulic |
Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back |
Tape/Grips | Marin MTN, Closed End |
Stem | Marin 3D Forged Alloy, 35mm |
Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
Seatpost | Marin Alloy, 30.9mm |
Saddle | Marin Speed Concept |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Green/Black/Yellow / One Size | 843346119797 | 735947001 | 210000006244 |
